Root Vegetables (Ginger, Carat, Turnip, Sweet Potato, Redis)

Model - Sorting Table




Sorting table consists of PVC rollers. The products will be dumped onto the rollers by elevator which will be conveyed forward with the help of the rollers. On the sorting section, rollers will move on their own axis & at the same time shall move forward. The workers standing on both sides of the machine will sort out the damaged or rotten products and will take such products out of the conveyor. Suitable spout is provided for the easy removal of rotten products.


Model Capacity
SRT-1 1 TPH
SRT-2 2 TPH
SRT-5 4-5 TPH

Download PDF

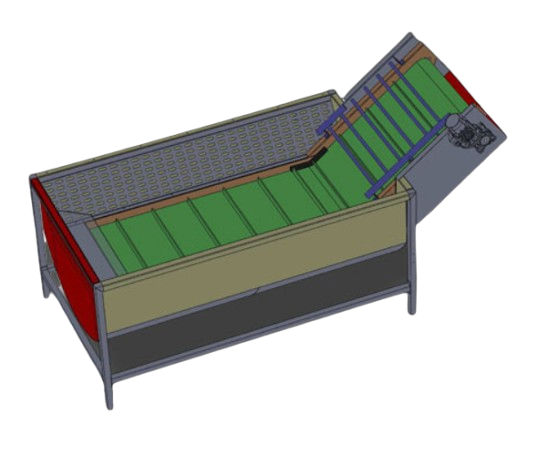

Model - Dump Tank




It consists of Wiremesh /UHMWPE Belt Conveyor. Contact parts are made of stainless steel and structure, pipelines are also made of stainless steel. The products will be dumped into wet hopper. Water will soften surface soil of produce. Water jets move product up to the belt conveyor and the product further moves with the help of clit type belt conveyor.


Model Capacity
DT 1 1 TPH
DT 2 2 TPH
DT 5 5 TPH
DT 10 10 TPH

Download PDF

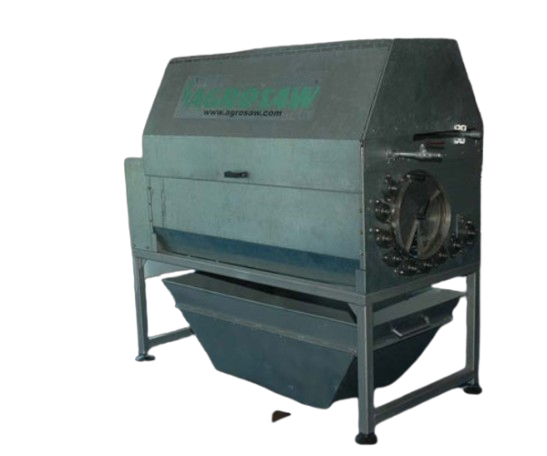

Model - Drum Washer




It consists of a rotary drum. Produce is fed into the drum washer and is washed as it travels through rotating drum. High pressure spray jet is provided inside the drum to remove debris (dirt, mud etc.).It effectively and gently washes the produce while removing soil, mud and stones.


Model Capacity
DRW 1 1 TPH
DRW 2 2 TPH
DRW 5 5 TPH
DRW 10 10 TPH

Download PDF

Model - Polisher




The brushing section is fitted with nylon rollers which rotate on their own axis. Produce goes through spiral bristle rollers from the suitable chute, then produce gets cleaned while moving on the rotating brushes.


Model Capacity
PLS-2 2 TPH
PLS-5 5 TPH

Download PDF

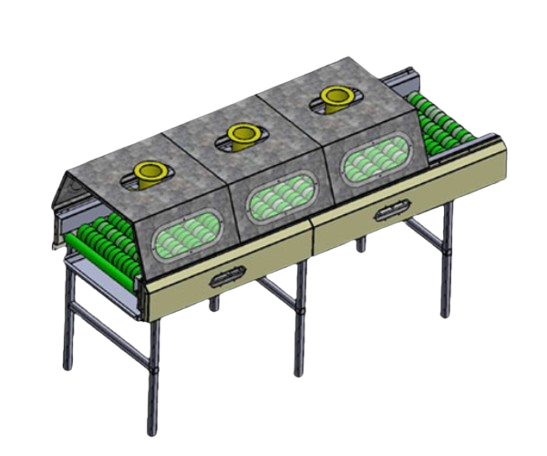

Model - Air Dryer




In air dryer the produce moves on the sponge rollers and simultaneously drying is done through fans during the process.


Model Capacity
ADR 1 1 TPH
ADR 2 2 TPH
ADR 5 5 TPH
ADR 10 10 TPH

Download PDF
