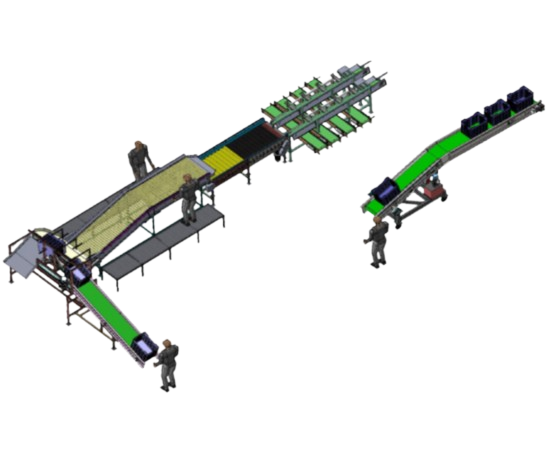

Round Fruits Grading Line (Orange, Tomato, Amla, Guava, Lemon)

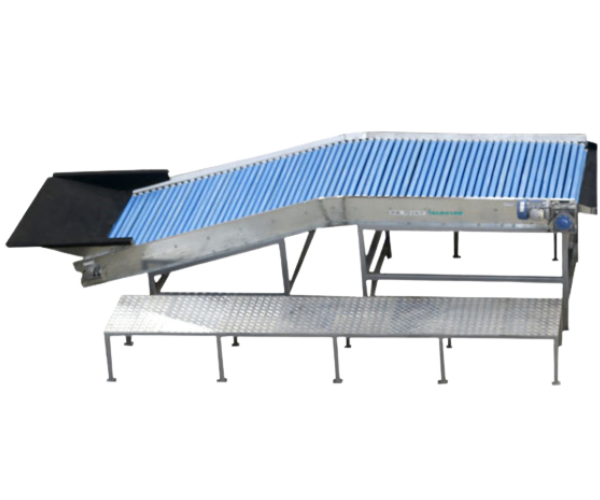

Model - Feeding Cum Sorting




Consisting of PVC Roller made of food grade material. PVC roller rotates on its own axis and at the same time moves forward. Workers on both sides of the machine inspect damages and rotten products.


Model Capacity
FCS - 0.5 500 KG/H
FCS-1 1 TPH
FCS-2 2 TPH
FCS-5 4-5 TPH
FCS-10 8-10 TPH

Download PDF

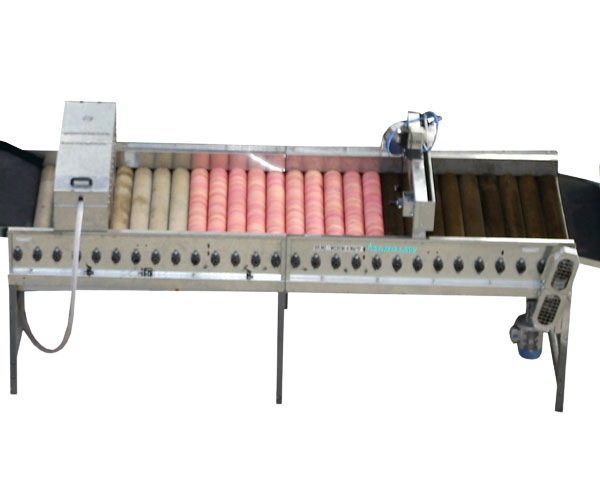

Model - Washing Cum Sponging Cum Waxing




It is used for washing, sponging and waxing of fruits & vegetables. It is fitted with nylon bristle rollers for washing purpose. Product is let into the bristle rollers from the sorting conveyor. A number of fine pressurized water jets wash the tumbling and rolling fruits. The bristle rollers gently rub the surface of products and clean them properly. These fruits then pass through sponging rollers made of high absorbent sponge. After sponging, Liquid Edible Wax is sprayed on the products. Polishing Rollers in the machine polish the product after application of wax. All contact parts are fabricated from food grade materials / stainless steel


Model Capacity
WSW-0.5 500 KG/H
WSW-1 1 TPH
WSW-2 2 TPH
WSW-5 4-5 TPH

Download PDF

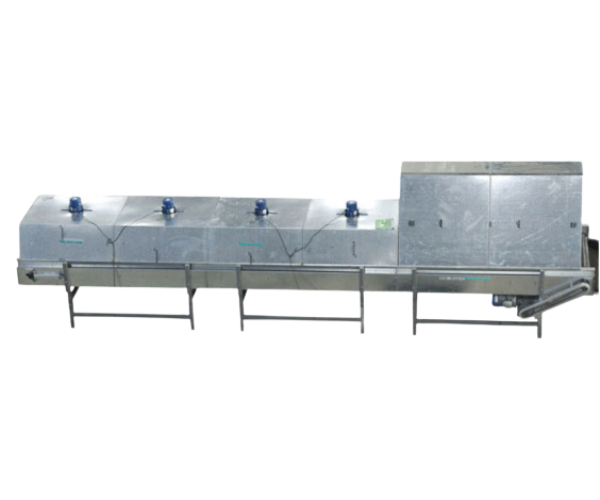

Model - Hot Air Dryer




This section is used for surface drying of products after application of wax. The temperature range 30°-50°. It has Electrical heaters with thermostatic control. Rollers made of PVC or aluminium. Contact parts are made of S.S. and structure of Mild steel


Model Capacity
HAD-0.5 500 KG/H
HAD-1 1 TPH
HAD-2 2 TPH
HAD-5 4-5 TPH

Download PDF

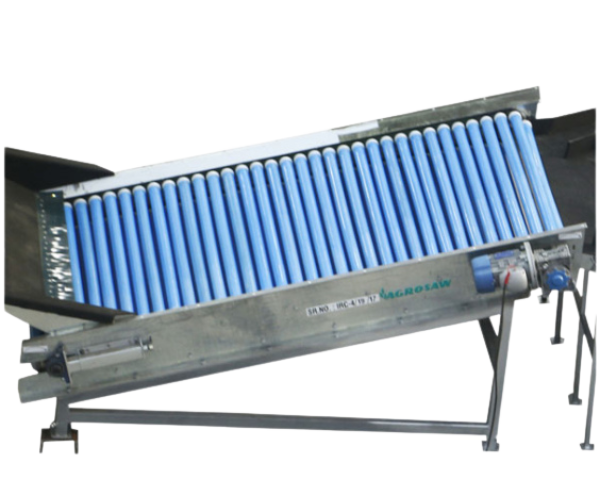

Model - Inclined Cylinder Roller (IRC)




The machine works as an interlink between dryer and grader. It receives produce from the dryer and feeds into the grader


Model Capacity
IRC-0.5 500 KG/H
IRC-1 1 TPH
IRC-2 2 TPH
IRC-5 4-5 TPH

Download PDF

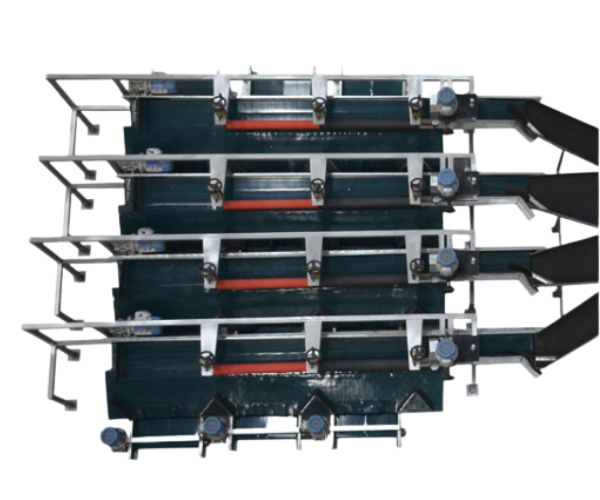

Model - Round Fruit Grader (RFG)




This is a Belt-roller type grader used for grading fruits & vegetables on the basis of diameter. Product moves continuously on the belt in a single layer. Series of Nylon roller hang on top of the belt & rotate on their own axis. Diameters of nylon rollers differ from each other so as to create a gap between the moving belt and rollers.

The gap between the belt and roller grades the product. Roller and other contact parts are fabricated from food grade material & structure is made up of mild steel.


Model Capacity
RFG-1 1 TPH
RFG-2 2 TPH
RFG-5 4-5 TPH

Download PDF

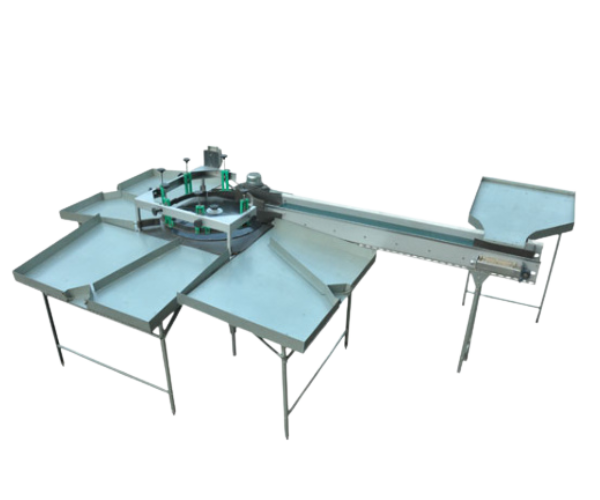

Model - RF-16




The grading machines consists of a rotating rubber coated disk and a series of measuring bars .The fruits are graded according to their diameter when rotating on the rubber disk and passing through the measuring bars. Rubber padded collection tables are provided on the periphery of the rotating disk for the collection of graded fruits. Five different sizes and one over size can be achieved from the machine.


Model Capacity
RF-16 1 TPH

Download PDF
